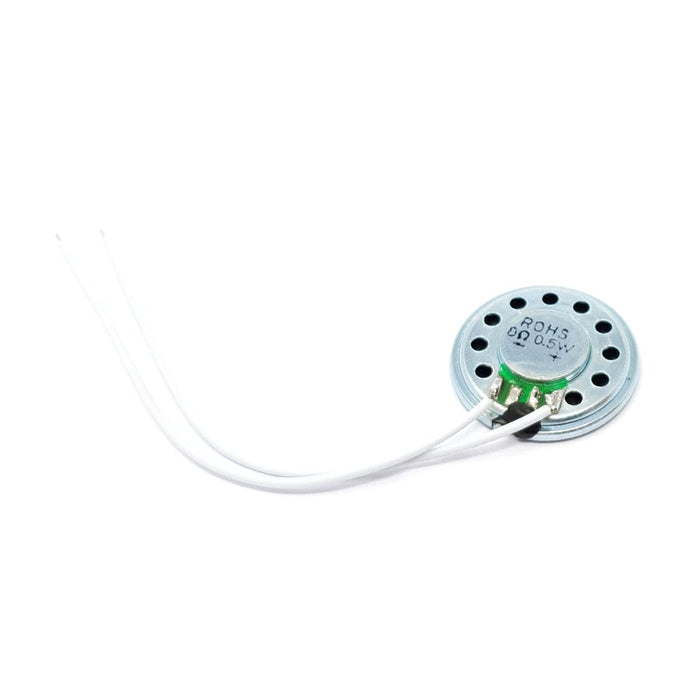

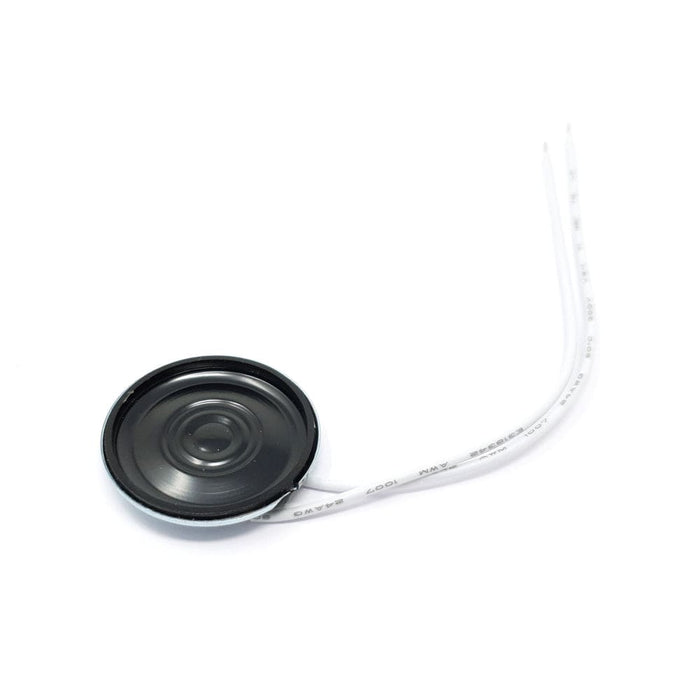

1" Mini metal Speaker with Wires - 8 Ohm 0.5W

1" Mini metal Speaker with Wires - 8 Ohm 0.5W

$1.48 USD
$2.00 USD $1.48 USD
Sale Sold out
Shipping calculated at checkout.

This little speaker is great for adding a compact, lightweight and low-power solution for your project's audio needs.

Just 1" in size, the speaker has an impedance of 8 ohms and uses up to just 0.5W of power.

Use with any amplifier board but take care with volume and power - you'll blow the speaker if you try to push too much through it. Remember most amplifier boards will offer more than 0.5W!

We also offer a 1.5" version!

Features

  • Diameter: 1" / 28mm
  • Height: 4.5mm
  • Weight: 6g

Specifications

  • Frequency: 680 ±20% Hz at 1V
  • Impedance: 8 ±20% Ω (at 1KHz)
  • Range: ~600-10KHz
  • Input Power: 0.25W
  • Max Input Power: 0.5W
