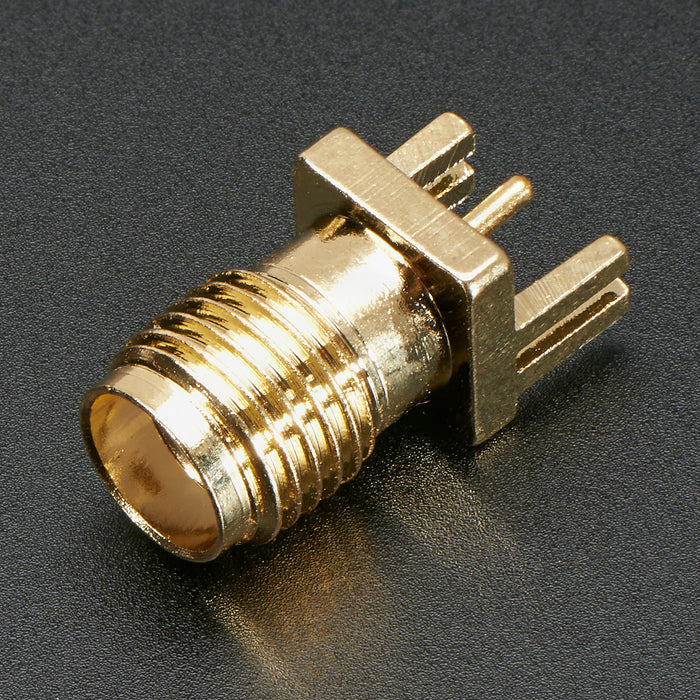

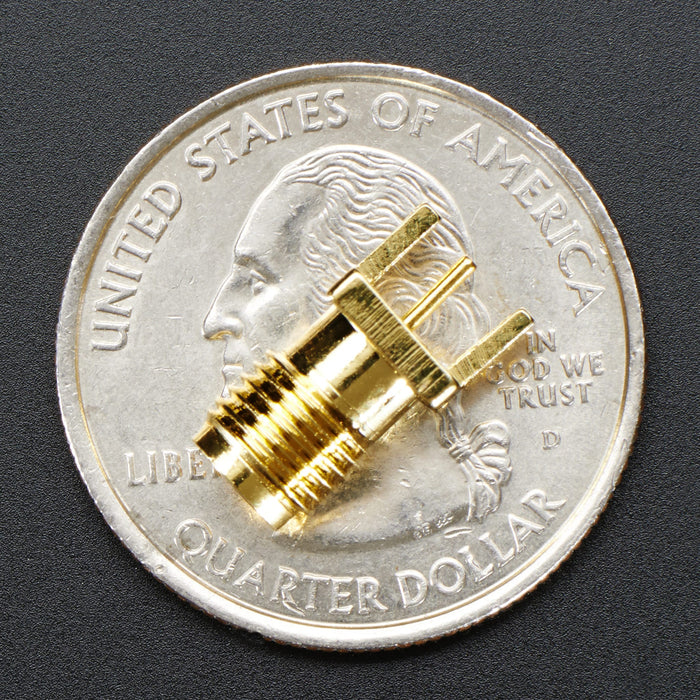

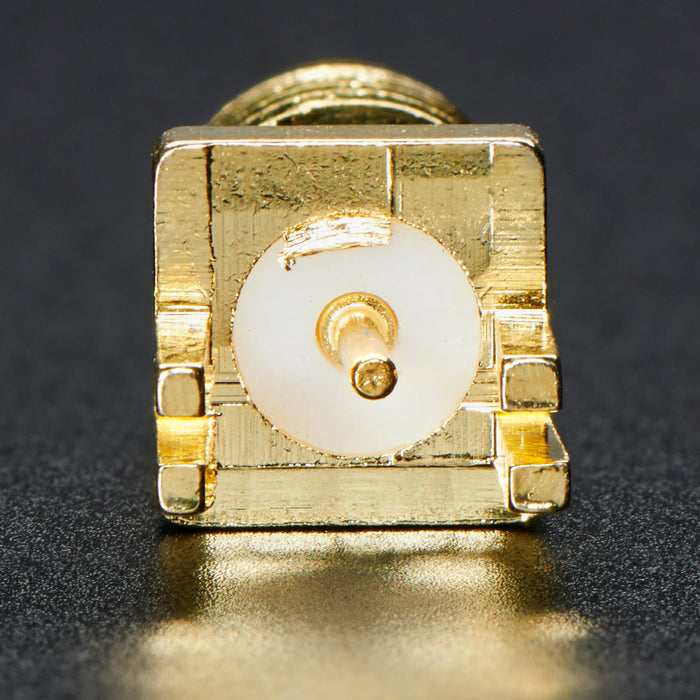

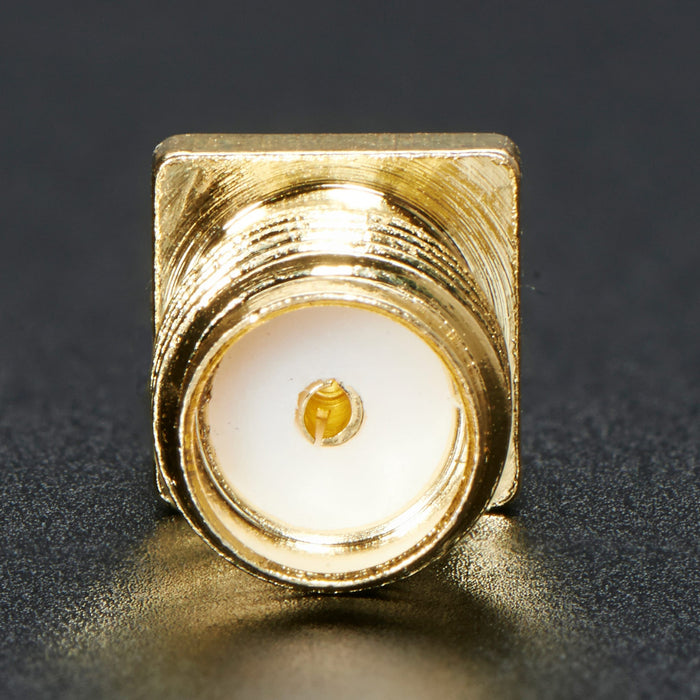

Edge-Launch SMA Connector for 0.8mm / 0.031" Slim PCBs

This Edge-Mount SMA Connector provides a low-profile, solder-friendly way to add an SMA connection to compatible PCBs, making it ideal for RF, wireless, and antenna projects.

This is a great connector for anyone doing RF work, when an SMA connector is required.

It hugs the edge of a "half thickness" 0.031" thick PCB (or thinner!) and 'launches' off of the edge. We like these for their ease of soldering and low profile. Mates with any SMA plug, there is also a SMA to RP-SMA in case your antenna is RP-SMA.

You can find an Eagle footprint for this part in the Adafruit Eagle Library, it's called SMA_EDGELAUNCH.

Features

• Edge-launching SMA connector for PCB-mounted RF applications
• Supports PCB thickness of 0.031" or thinner
• Low-profile design
• Compatible with standard SMA plugs
• Easy to solder
• RP-SMA adapter available for RP-SMA antennas

Specifications

• Impedance: 50 ohm
• Diameter of Jack: 6.1mm
• Width of Plug: 6.4mm
• Total Length of Connector: 13.5mm
• Weight: 2g

Package Contents

• 1x Edge-Launch SMA Connector for 0.8mm / 0.031" Slim PCBs
