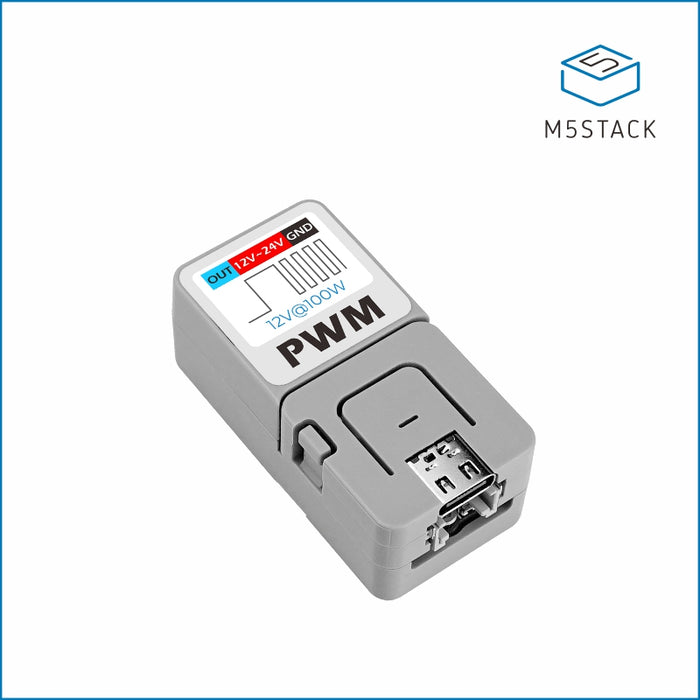

[EOL] ATOM PWM Kit (FDD8447L)

Description

Atom PWM is a single-channel PWM adjustable DC driver with a built-in MOSFET capable of handling up to 12V@100W. It is suitable for applications such as high-power DC motor PWM speed control and industrial heating wire control. Using Atom-Lite as the core controller (built-in ESP32), it offers a wide range of PWM dynamic adjustment (e.g., at a frequency of 5 kHz, the duty cycle adjustment range is 0-100%, with a resolution of up to 13 bits). Combined with the built-in WIFI function, it can easily achieve remote control. It supports UiFlow graphical programming, making it easy to configure signal output and function expansion.

Features

• Single-channel low-latency PWM signal output
• High-power MOSFET with an output capability of 12V@100W
• Built-in DC-DC (12V->5V) conversion circuit
• Easy installation and simple operation
• Integrated design with a protective casing
• Development platforms: Arduino, UiFlow

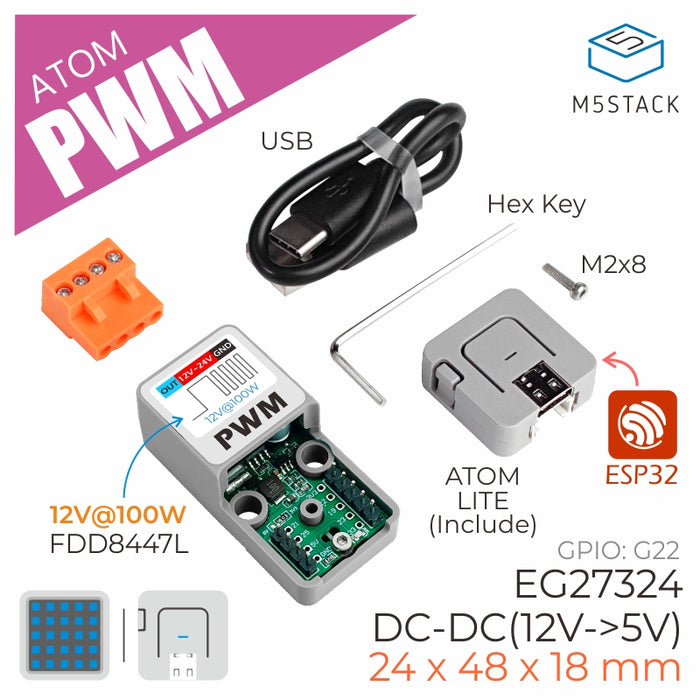

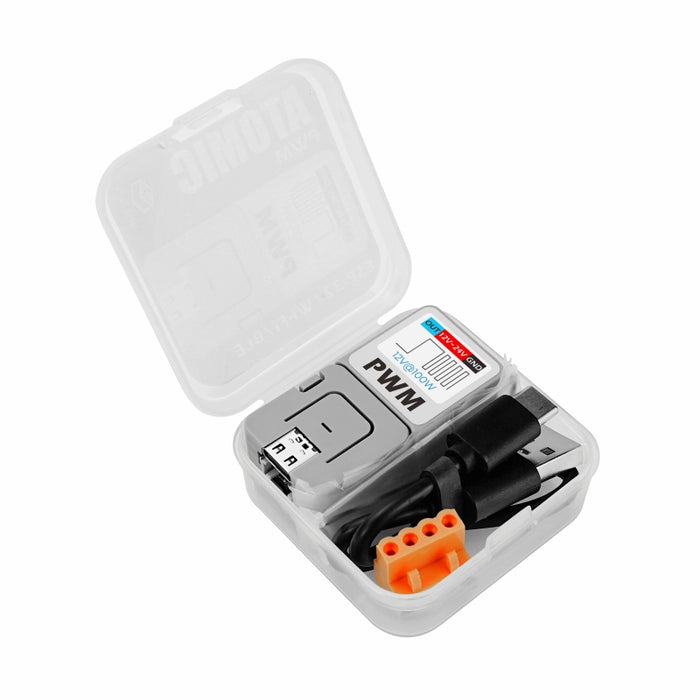

Includes

• 1 x Atom-Lite
• 1 x Atomic PWM Base
• 1 x M2 Hex Key
• 1 x M2*8 Cup Head Machine Screw
• 1 x HT3.96-4P Terminal
• 1 x TYPE-C USB Cable (20cm)

Applications

• DC motor control
• Lighting control
• Heating wire control
• DC load
