Pogo Pin Probe Clip

The Pogo Pin Probe Clip provides a precise, solder-free connection to PCB pads, using a spring-loaded pogo pin and soft-grip clip to hold probes securely in place during testing and debugging.

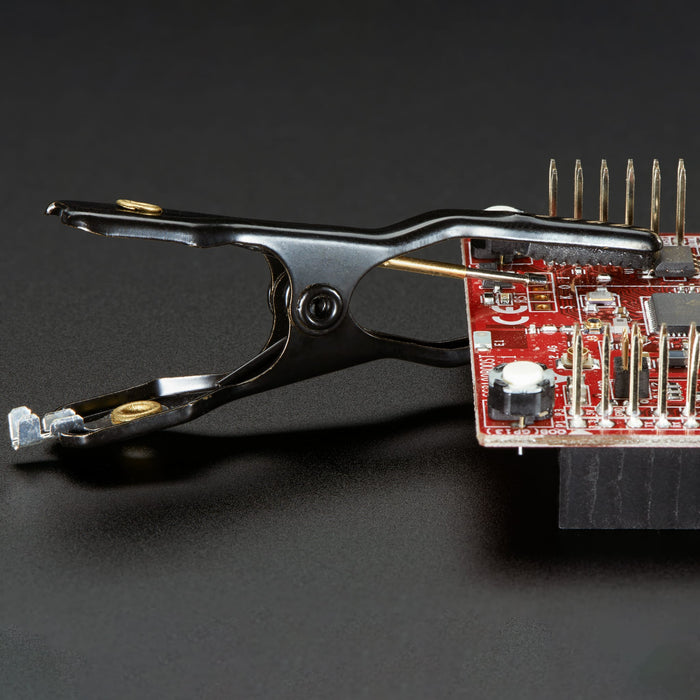

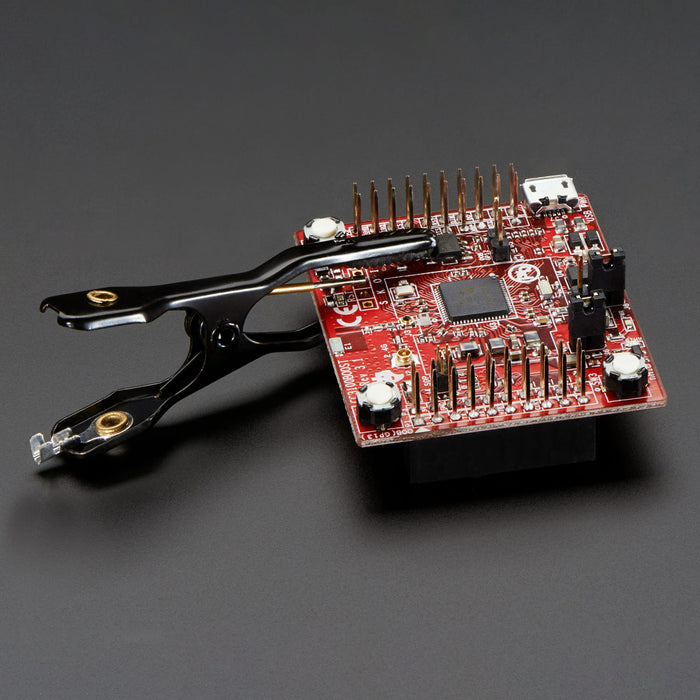

The Pogo Pin Probe Clip is a great way to test and connect with pin-point accuracy without soldering! It's sort of like an alligator clip with a built-in springy pogo pin - so you can connect to any PCB pad for 'scoping, analysing, or multi-metering.

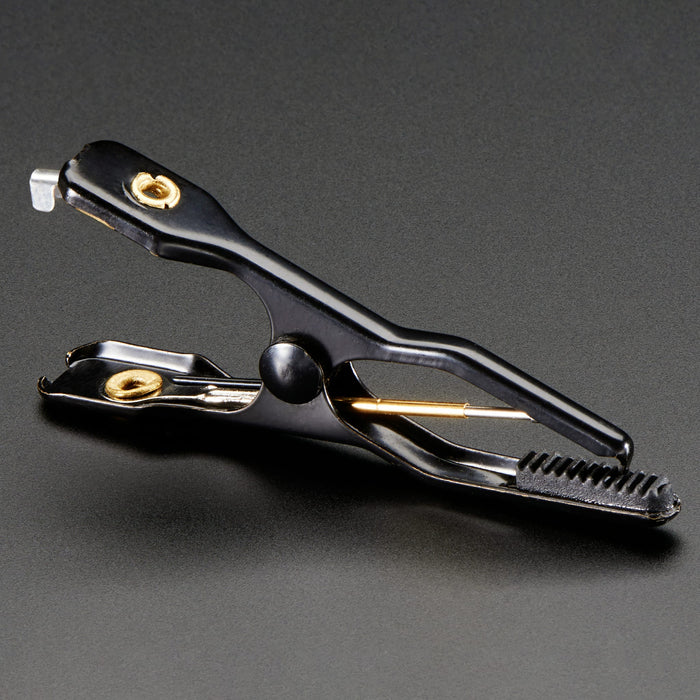

The clip is strong enough to grip onto a PCB but has a soft grip so it won't mar or damage circuits. The 'tongue' is a round-tip pogo pin - a little spring-loaded contact that's very handy for making momentary electrically solid contacts. The continuity goes through the clip and out to a solder-friendly crimp connector.

You could also use this for connecting to batteries, wearables, just about anything where you wish you had a third/fourth/etc hand to hold a probe in place.

Please note: Development board not included.

Features

• Pogo pin probe with spring-loaded contact for accurate testing
• No soldering required
• Soft-grip design to protect PCB pads and circuits
• Strong enough to grip securely whilst testing
• Round-tip pogo pin for momentary electrical connections
• Crimp connector for solder-friendly termination
• Ideal for oscilloscopes, multi-meters, and circuit analysis
• Compatible with PCB pads, batteries, and wearables
• Holds probe in place without additional hands

Specifications

• Max Voltage/Current: 100V / 1A

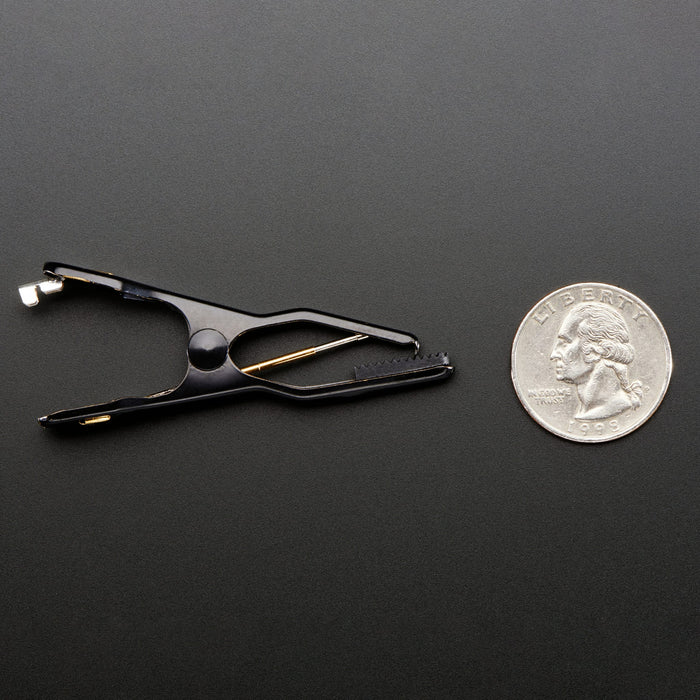

• Length: 65mm

• Opening: 30mm

• Weight: 6.4g

Package Contents

• 1x Pogo Pin Probe Clip
