Unassembled Mini Pan-Tilt Kit (Without Micro Servos)

This Pan-Tilt Kit adds two-axis movement to your project, with roughly 180° of side-to-side rotation and up to 150° of tilt, ready for you to add your choice of compatible micro servos.

This unassembled pan-tilt kit is the perfect way to give your project customized full range motion!

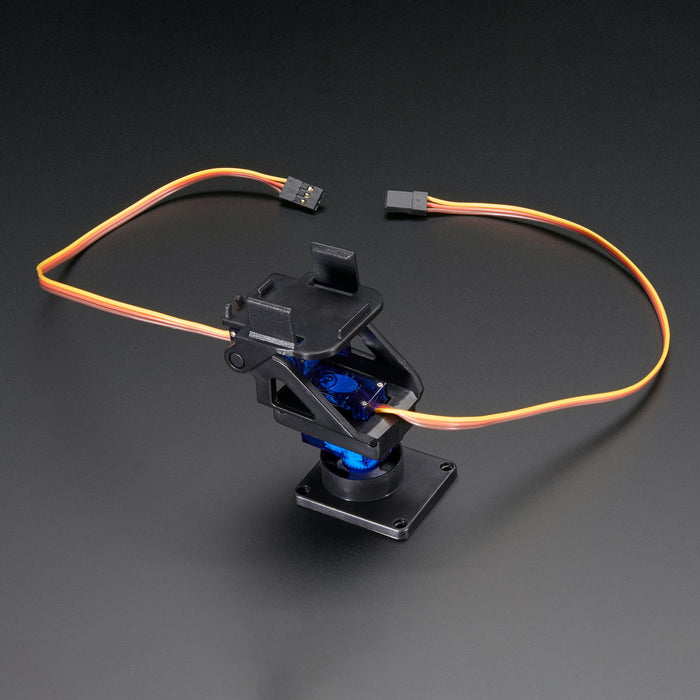

The pan-tilt can rotate roughly 180° from side-to-side and can tilt downwards roughly 150° (it may be less depending on the servos you use, of course).

This version comes in kit form without any servos, unlike our fully assembled version so if you have a bunch of servos already, or want to customize with one of our many micro servo options such as feedback-type, this is probably the better option for you. (The metal-gear 9g micro servos won't fit!)

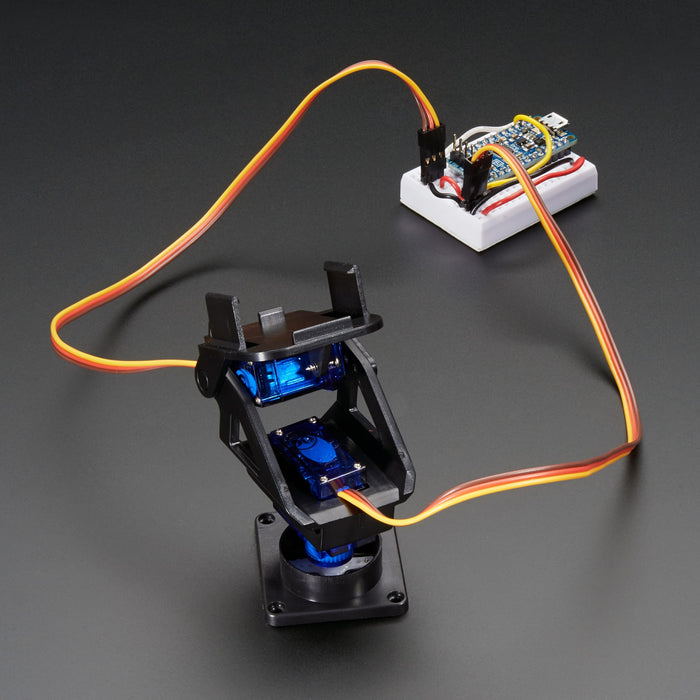

Since the motors are plain, every-day analogue servos, you can use any microcontroller or driver. They're good for beginners who want to make stuff move and the pan-tilt is an easy way to give whatever you're making both left-right and up-down motion. In our demo, we hooked this up with a Trinket Pro and made it do a little dance with the Arduino Servo library.

Please note: Servo not included.

Features

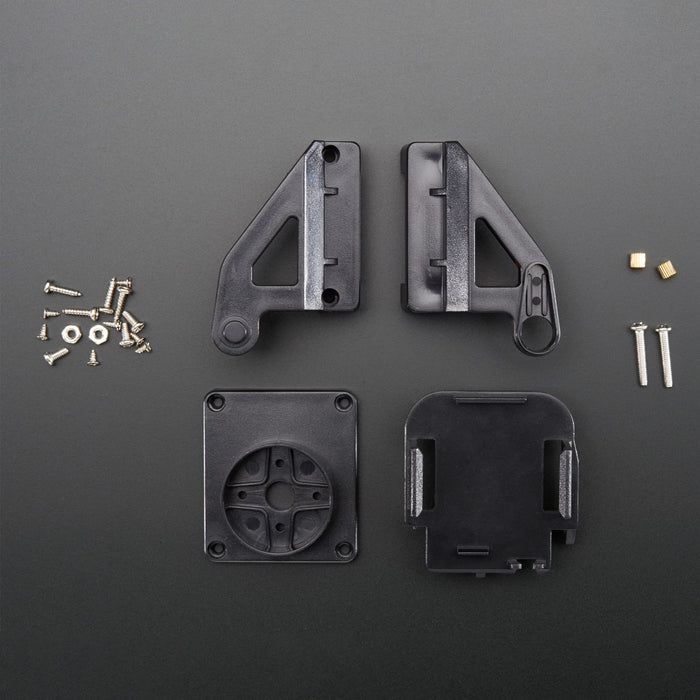

• Unassembled kit form without servos included
• Approximately 180° pan (side-to-side) rotation
• Approximately 150° tilt (downward) motion
• Compatible with standard analog servos
• Works with any microcontroller or servo driver
• Customisable servo selection for your project needs
• Ideal for beginners and hobbyists
• Controllable via Arduino Servo library
• Metal-gear 9g micro servos not compatible

Specifications

• Base: 37mm x 33mm x 3mm

• Mounting Hole Distances: 30mm x 26mm

Resources

• Arduino library

Package Contents

• 1x Unassembled Mini Pan-Tilt Kit (Without Micro Servos)

Servo not included.
